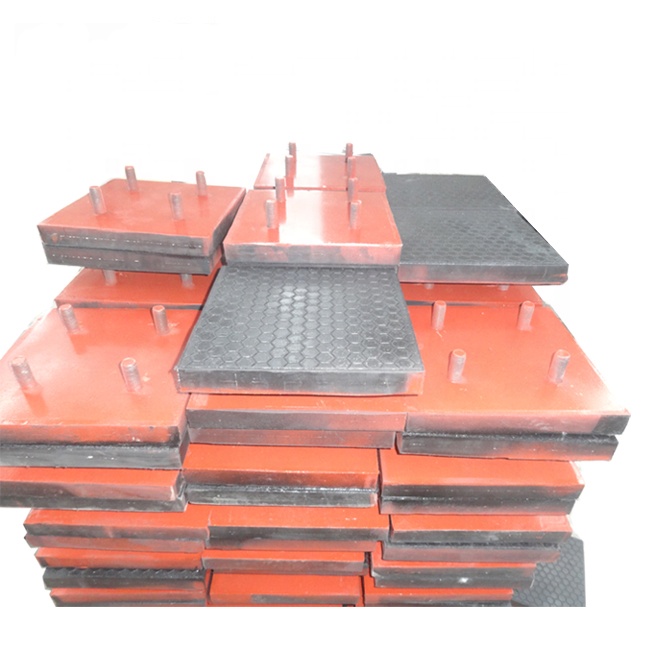

92% AL2O3 alumina ceramic tiles and natural rubber plate for wear resistance liner

Place of Origin: China Type: Ceramic Plates Application: Industrial Ceramic, Wear Resistant Industry Material: Alumina Ceramic Model Number: 300x300x12 Brand Name: Supereal Product name: 92% AL2O3 alumina ceramic tiles and natural rubber plate Alumina Content: 92% Bulk Density: 3.6-3.63g/cm3 Moh's Hardness: 9 Water Absorption: 0.01% Shape: cusomized Mode of Ceramic Shaped: Dry Pressing Ceramic Forming Temperature: 1530℃ Process: Hot Vulcanization
  • 92% AL2O3 alumina ceramic tiles and natural rubber plate for wear resistance liner
  • 92% AL2O3 alumina ceramic tiles and natural rubber plate for wear resistance liner
  • 92% AL2O3 alumina ceramic tiles and natural rubber plate for wear resistance liner
  • 92% AL2O3 alumina ceramic tiles and natural rubber plate for wear resistance liner
  • 92% AL2O3 alumina ceramic tiles and natural rubber plate for wear resistance liner

SPECIFICATION

1. Advantages:

92% AL2O3 alumina ceramic tiles and natural rubber plate for wear resistance liner combined with advantages of alumina ceramics and rubber, are beneficial to decrease downtime, maintenance cost and extend the service life of the equipment.



2. Brief Introduction:

92% AL2O3 alumina ceramic tiles and natural rubber plate for wear resistance liner are compounded by high alumina ceramics and excellent natural rubber through special process.The excellent damping performance of natural rubber can help to achieve some impact resistance which will prevent the tiles from cracking in areas of high impact, which achieves a vastly superior result to ceramic lining tiles which are bonded directly to the steelworks.



 3. Main Technical Data of 92% AL2O3 alumina ceramic tiles and natural rubber plate for wear resistance liner

Technical Data of the Ceramics:

   Items

  Index

Alumina content

92%

Bulk Density

3.63g/cm³

Rockwell Hardness (HRA)

90

Compressive Strength

850MPa

Fracture Toughness

4.8MPa.M1/2

 Bending Strengt

290MPa

Thermal Conductivity 20℃

20W/m.k

Coefficient of Thermal Expansion

7.2×10-6m/×m.k

Young's Modulus  20℃ 277GPa

Shear Modulus   20℃

113GPa

Surface  Finish: As Fired

1.27mm

Color

White
